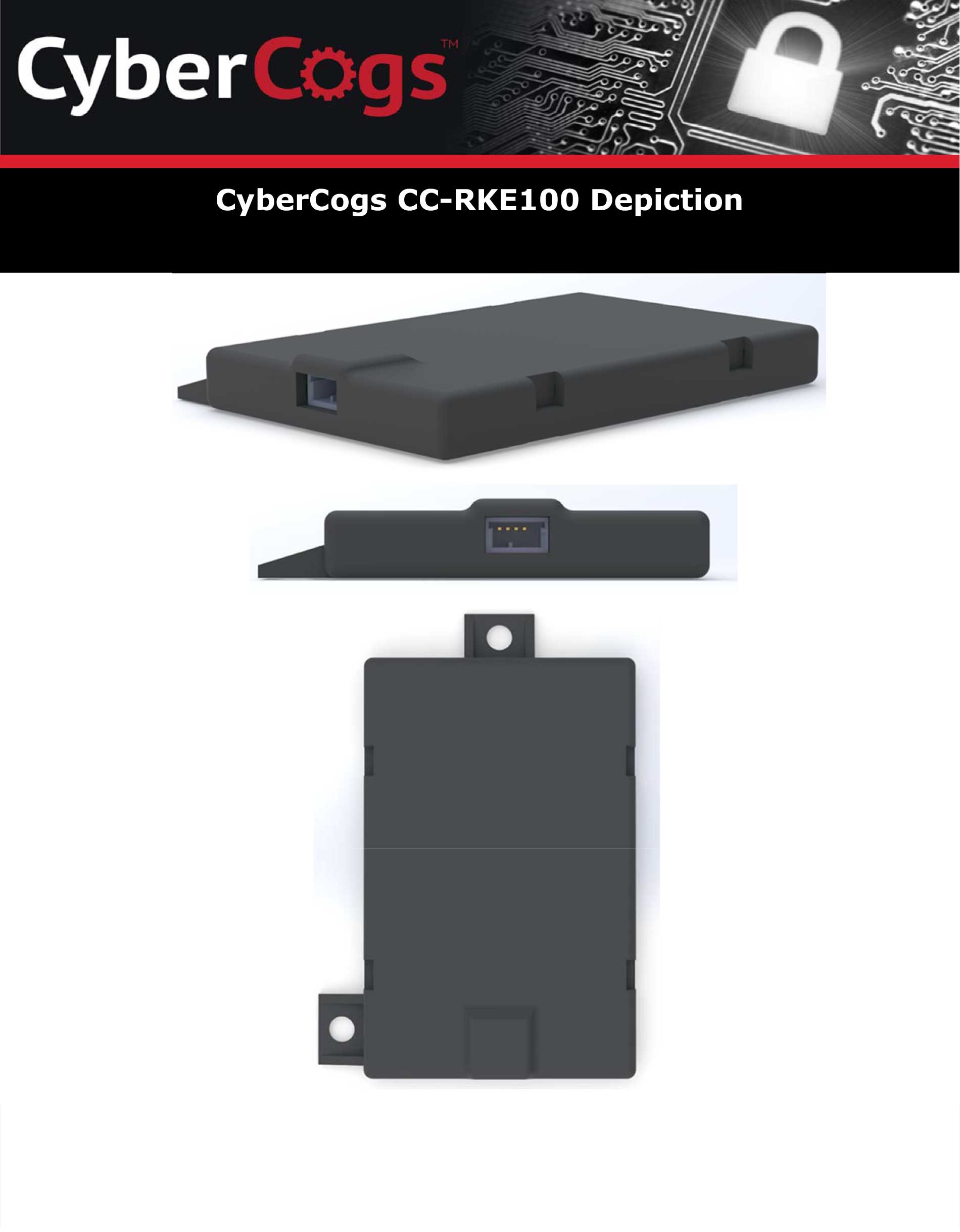

CyberCogs CC-RKE100 Remote Keyless Entry and CC-FOB100 module

ADAPTABLE SOFWARE PERFORMING ALL REMOTE KEYLESS ENTRY FUNCTIONS
Hardware Specifications
  • Dimensions: 90w x 58d x 12h (mm)
  • Power: 6‐36VDC
  • Communication Ports: 1 CAN FD port
  • RF receive Frequencies:
    • 433Mhz (425Mhz to 480Mhz)
    • 315Mhz (287Mhz to 320Mhz)
  • RF receive Modulation: ASK, OOK, FSK
  • Data rate: up to 200Kbps
  • Optional Frequency: 125Khz TPMS transmitter
  • Processor: Cortex M0 running at 48Mhz
  • Memory:
    • 17 Kbytes RAM
    • 128Kbytes of FLASH
  • Package: ABS black plastic UL 94V0
  • Connector: 4 pin connector , TE CONNECTIVITY, 4POS,TAB0.5X0.4,HDR ASSY,90 DEG,COD A, P/N: 233920‐4
  • Temperature range: ‐40 to 95C
Additional Features
  • ISO26262 , ASIL‐B compliant
  • USA designed and manufactured
  • Integrated Security
  • Secure boot
  • Secure internal key storage for signing, verification, and encryption in secure module subcomponent
Software Features
  • Adaptable Software with modular design for easy integration, performing all Remote Keyless Entry functions
  • ISS FlexHSM pre‐ported through partnership with ISS
  • ISS FlexUpdate pre‐ported through partnership with ISS
  • ISS DLM Trust for provisioning through partnership with ISS
  • Secure communication available through DLM Trust (available through partnership with ISS)
  • Software developed to Autosar coding guidelines

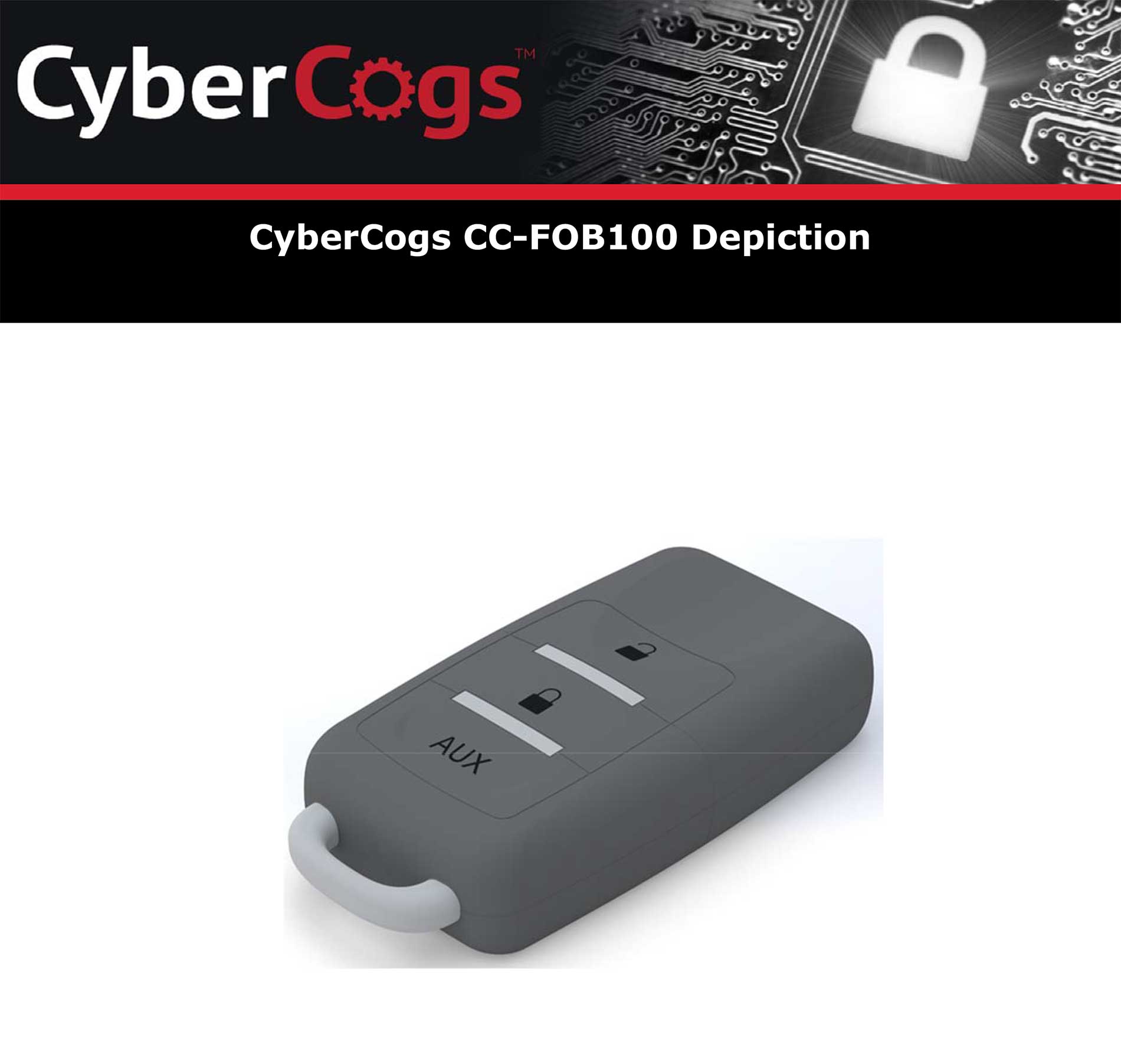

Hardware Specifications
  • Dimensions: 35w x 64d x 16h (mm)
  • Power: CR2032 Coin battery
  • Battery life: 4+ years
  • RF receive Frequencies:
    • 433Mhz (425Mhz to 480Mhz)
    • 315Mhz (287Mhz to 320Mhz)
  • RF receive Modulation: ASK, OOK, FSK
  • Data rate: up to 200Kbps
  • Processor: Cortex M0 running at 48Mhz
  • Memory:
    • 12 Kbytes RAM
    • 16Kbytes of FLASH
  • Package: ABS plastic UL 94V0
  • Buttons: 3 buttons (option for more)
    • Lock
    • Unlock
    • Aux (Alarm, customizable)
  • Temperature range: ‐40 to 60C
Additional Features
  • USA designed and manufactured
  • Integrated Security
  • Secure boot
  • Secure internal key storage for signing, verification, and encryption in secure module subcomponent
Software Features
  • Adaptable Software with modular design for easy integration, performing all Remote Keyless Entry functions
  • ISS FlexHSM pre‐ported through partnership with ISS
  • ISS FlexUpdate pre‐ported through partnership with ISS
  • ISS DLM Trust for provisioning through partnership with ISS
  • Secure communication available through DLM Trust (available through partnership with ISS)
  • Software developed to Autosar coding guidelines
