CyberCogs CC-PDU100 Combined Charging Unit
ADAPTABLE SOFTWARE PERFORMING ALL CHARGING FUNCTIONS
Hardware Specifications
- Dimensions: 305w x 227d x 127h (mm)
- PDU input:
- BMS input 140KwaƩs at 425VDC maximum
- PDU outputs:
- F‐EDM output: 120KwaƩs
- DC/DC & OBC input/output: 14KwaƩs
- HVAC output: 5KwaƩs
- Coolant PCT output : 10KwaƩs
- Air PTC output: 7.5KwaƩs

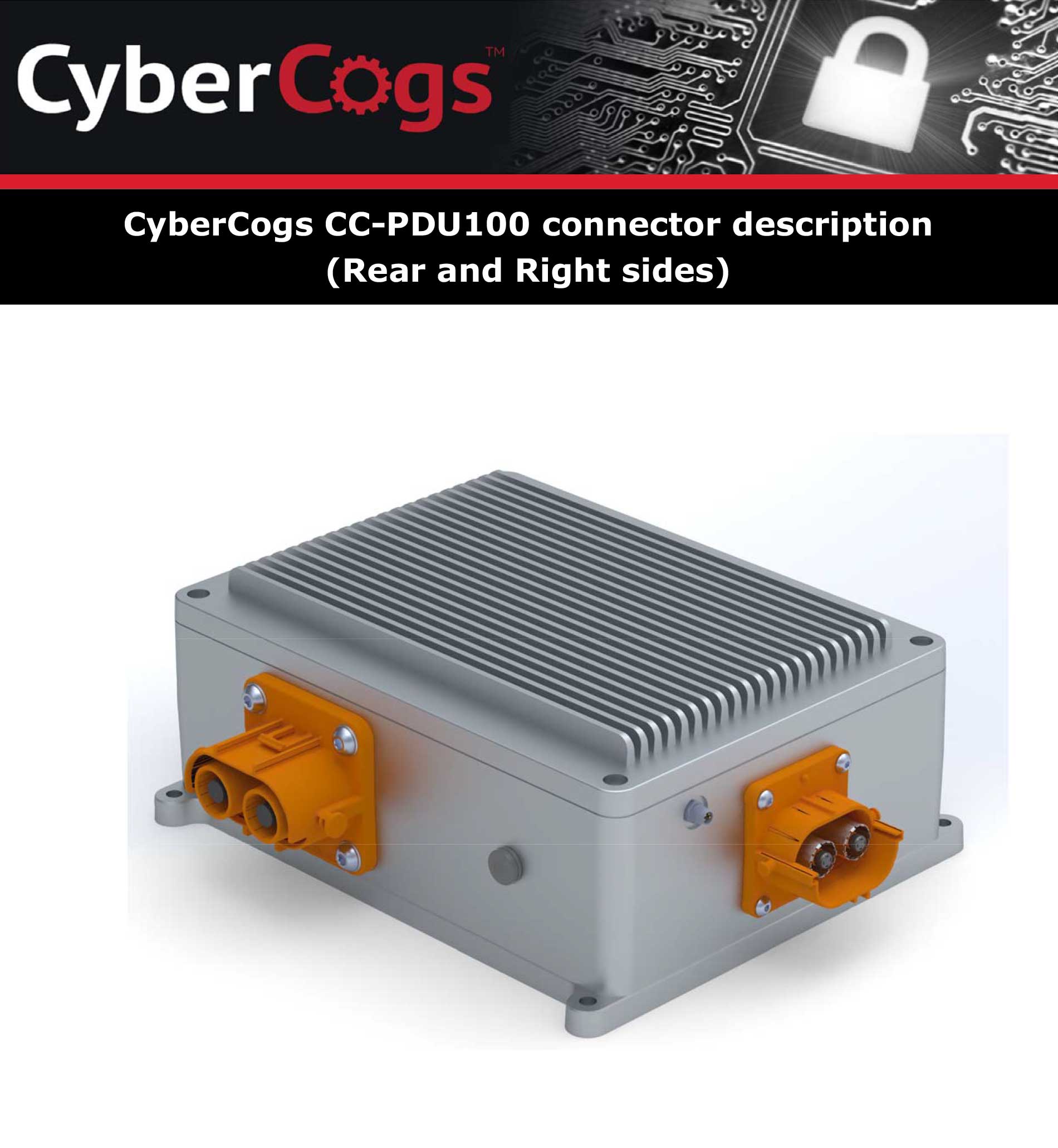

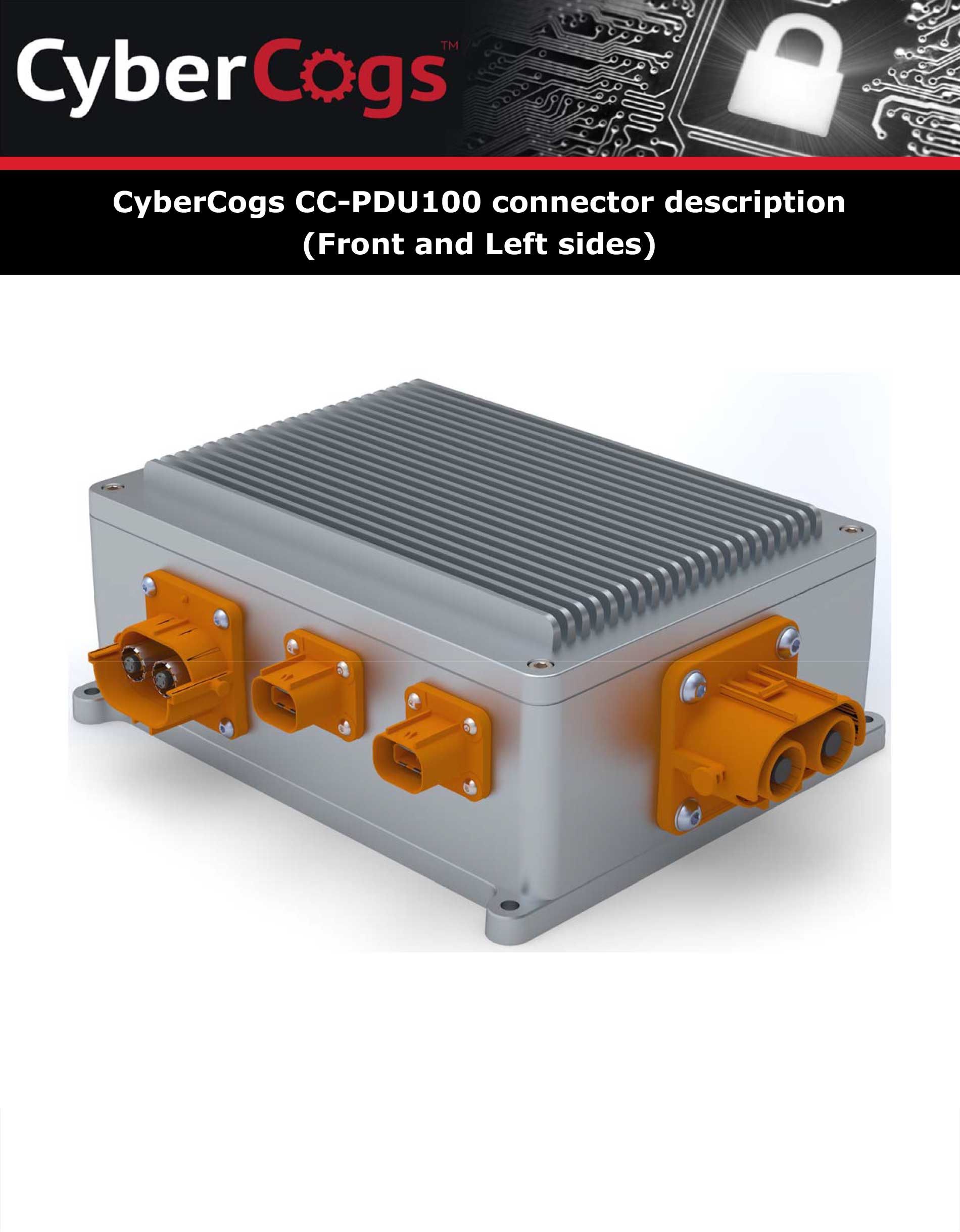

- Connectors:
- BMS input/output connector: HVSL1400022BXD8S6
- F‐EDM connector: HVSL1400022AXD8S6
- DC/DC & OBC connector: 2141227‐2
- HVAC connector: 1‐2103124‐2
- Coolant PTC connector: 2141227‐1
- Air PTC connector: 1‐2103124‐4
- Safety Ratings:
- ASIL C compliant
- FMVSS 305 Compliant
- Functional Rating:
- SAE J1772 Conducting Charging standards
Hardware Specifications
- Input Protection:
- Lid open detection switch
- HVIL interlock on all connectors (Note: series wired)
- Output Protection:
- Serviceable fusing on all outputs
- Environmental:
- Operating temperature: ‐40 to 95 deg. C
- Storage temperature: ‐40 to 100 deg. C
- Package:
- Sealed Aluminum package with heatsink top
- IP67 Rating
- Mounting:
- 4 M6 or ¼‐20 screws
- Horizontal and Vertical Mounting
- Cooling:
- Passive Conductive Heatsinking
Additional Features
- USA designed and manufactured
