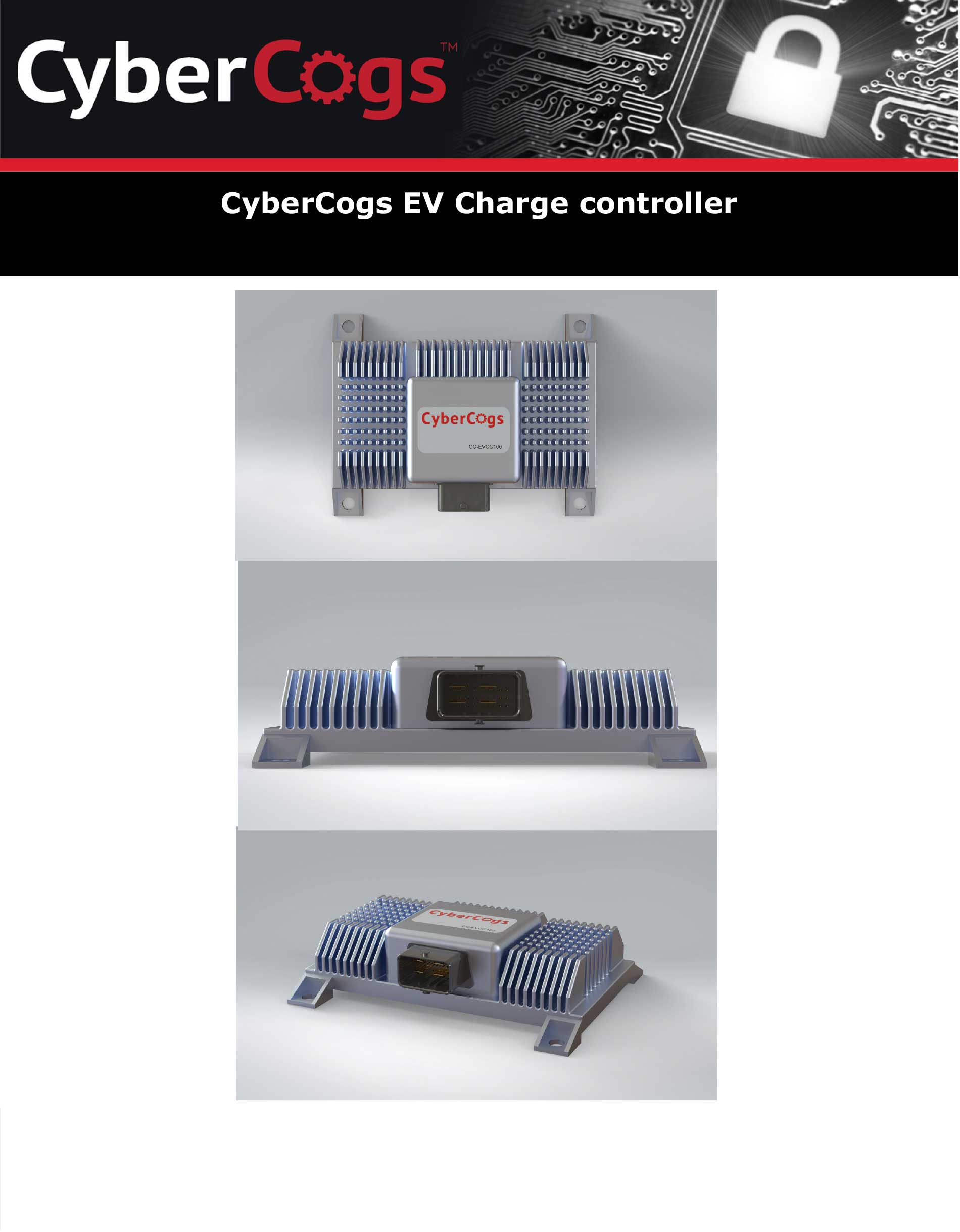

CyberCogs CC-EVCC100 EV Charge Controller

Hardware Specifications
  • Dimensions: 7” w x 9”d x 2”h
  • Power: 8-32VDC (ISO16750)
  • Communication Ports:
    • 1 PLC port based on IEC61851, ISO15118
    • 3 CAN bus ports
  • IO Ports:
    • 4 Discrete inputs
    • 4 Discrete Outputs
    • 4 Analog inputs (temperature monitor inputs, generic)
    • 5Volt @100mA sensor power
  • Processor: up to 3 CPU running at 200 MHz
  • Memory:
    • Up to 4MBytes flash with ECC protection
    • Up to 482KBytes of RAM with ECC protection
  • Status Indicator outputs:
    • Tri-color Status LED
    • Commination LEDs for each port
  • Package: all metal rated for IP6K6K, IP6K7 and IP6K9K
  • Connector: Molex CMC36 Hybrid sealed
  • Temperature range: -40 to 95C
Additional Features
  • ISO26262 , ASIL-D compliant
  • USA designed and manufactured
  • Integrated HSM
Software Features
  • Adaptable Software with modular design for easy integration
  • Secure CCS handle curing charging real time diagnostics
  • Security through FlexHSM, FlexUpdate and DLM Trust provisioning
Communication And Device Security
  • Secure internal key storage for signing, verification, and encryption in secure module subcomponent
  • Secure boot
  • Signed and secured updates (available through partnership with ISS)
  • Secure communication available through SCMS (available through partnership with ISS)
