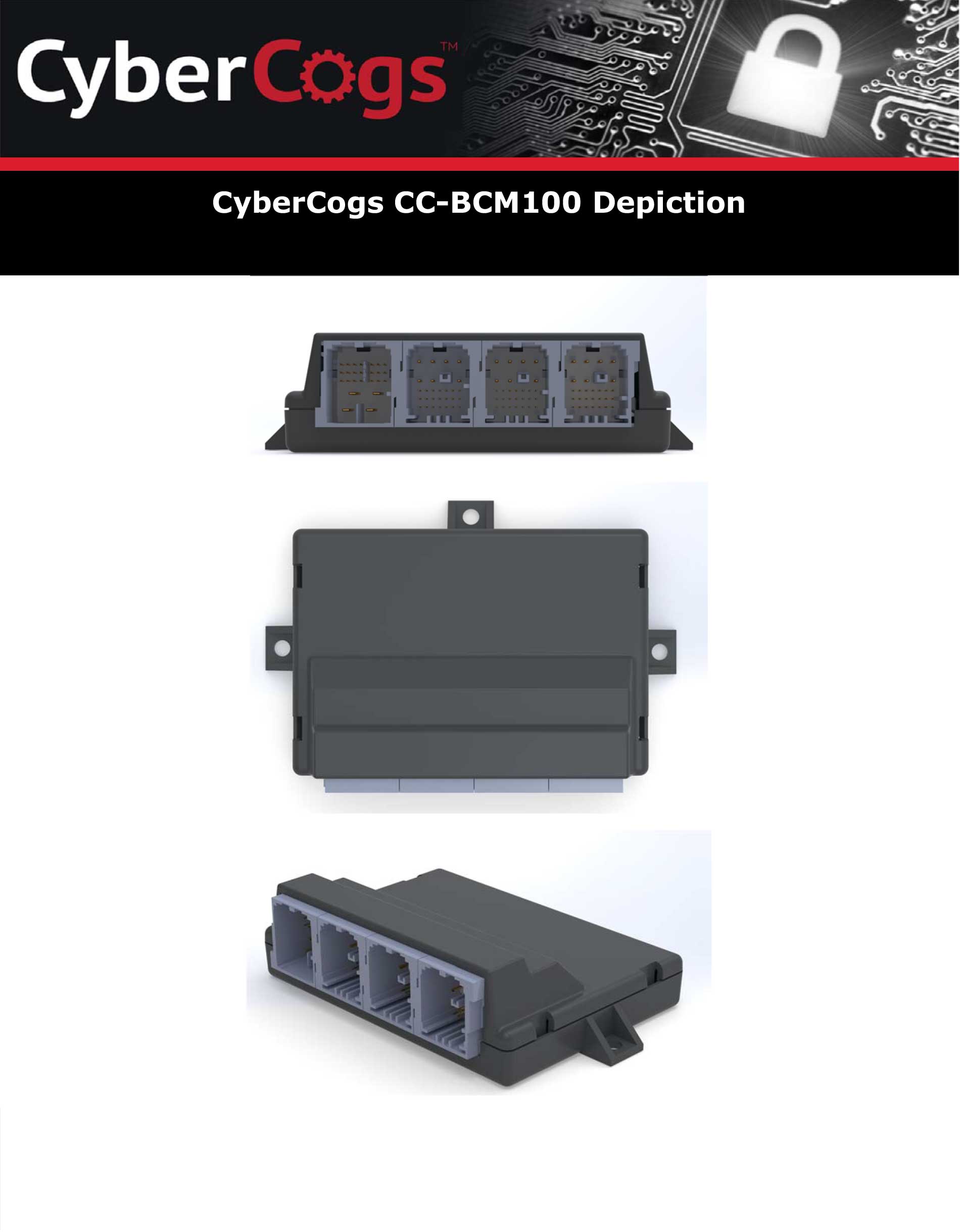

CyberCogs CC-BCM100 Body Control Module

ADAPTABLE SOFTWARE PERFORMING ALL BODY CONTROL FUNCTIONS
Hardware Specifications
  • Dimensions: 137w x 97d x 36h(mm)
  • Power: 6‐36VDC
  • Communication Ports:
    • 1 LIN port
    • 2 CAN bus ports
  • IO Ports:
    • Discrete inputs
    • Analog inputs, 12 bit resolution
      • Sensor power
    • Discrete Outputs:
      • Low Side Drive (LSD) up to 3 Amps
      • High Side Drive (HSD) up to 3Amps
      • PWM outputs
  • Processor: Cortex M4F running at 112Mhz
  • Memory:
    • 1 Mbytes flash
    • 128Kbytes of RAM
  • Package: ABS black plastic UL 94V0
  • Connector: 109 pin Molex Multi‐4Bay
  • Temperature range: ‐40 to 95C
Additional Features
  • ISO26262 , ASIL‐B compliant
  • USA designed and manufactured
  • Integrated HSM
  • Secure boot
  • Secure internal key storage for signing, verification, and encryption in secure module subcomponent
Software Features
  • Adaptable Software with modular design for easy integration, performing all Body Control functions
  • ISS FlexHSM pre‐ported through partnership with ISS
  • ISS FlexUpdate pre‐ported through partnership with ISS
  • ISS DLM Trust for provisioning through partnership with ISS
  • Secure communication available through DLM Trust (available through partnership with ISS)
  • Software developed to Autosar coding guidelines
